Technical specification:
Power: 0.12 kw ~ 160 kw
Angular moment: 85 N.m ~ 18000 N.m
Transmission rate: 1.4 ~ 28000
Overview:
R series helical gearboxes is a machine that realizes mechatronics, high transmission efficiency, low energy consumption, and is mostly used in metallurgy, petroleum, mining, mixer, sewage treatment and other machines.
Equipment method:
R: Foot mounting
RF: flange mounting
RX: Single-stage foot mounting
RXF: single stage flange mounting
R..R: Combination of two models
Characteristics:
1). Use high-quality forged steel material, rigid cast iron box.
2). low energy consumption, superior performance, reducer efficiency up to 95%.
3). Low vibration, low noise and high energy saving.
4). Compact structure, maximizing the use of cabinet space.
5). Installation method: foot mounting, flange mounting with large and small flanges, easy to choose.
6). For solid shaft output, the average efficiency is 96% in the two stage, 94% in the three stage, and the average efficiency of the R combination is higher.
Working conditions：
. Max.speed of high-speed shaft shall not be more than 1500r/min.
2). Peripheral speed of gear shall not be more than 10m/s.
3). Working environmental temperature is -40~+45°C.
Models：
R37/R47/R57/R67/R77/R87/R97/R107/R137/R147/R167
RF37/RF47/RF57/RF67/RF77/RF87/RF97/RF107/RF137/RF147/RF167
RX57/RX67/RX77/RX87/RX97/RX107
RXF57/RXF67/RXF77RXF87/RXF97/RXF107
Product pictures:

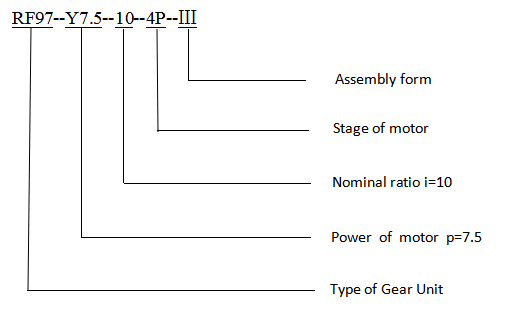

Order symbol:
